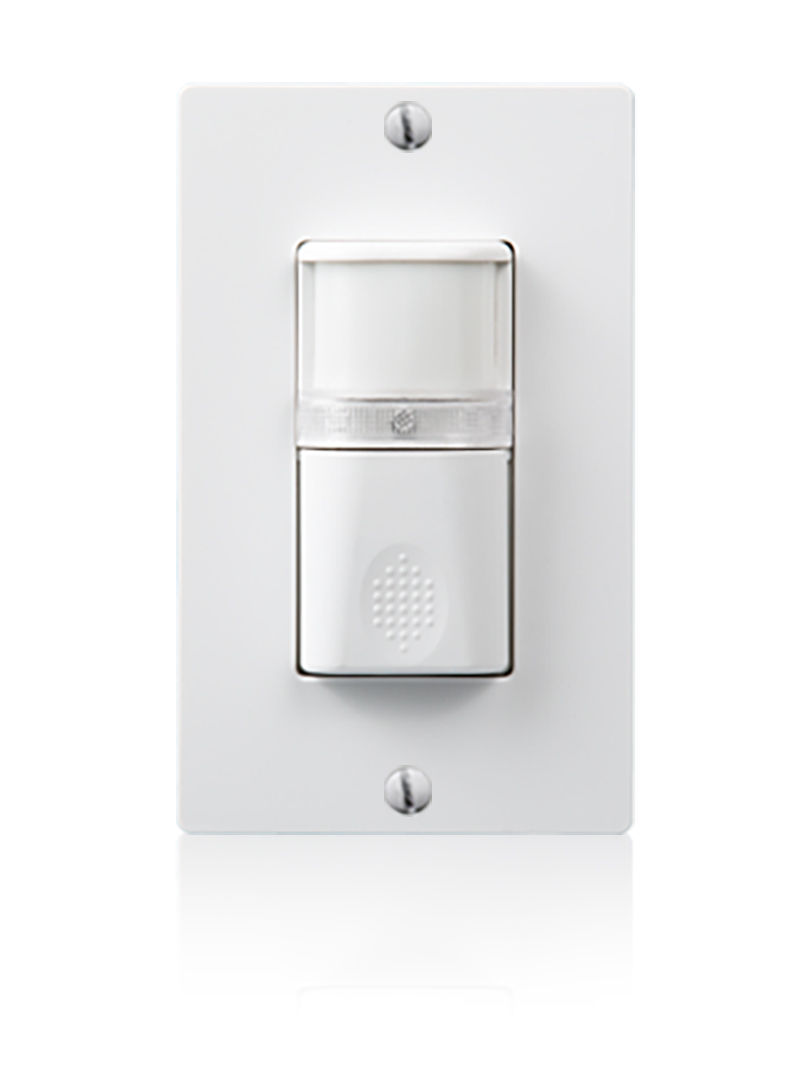

YM183-W YM183-W

:: Max Load: 0~800W(120V)/0~1200W(277V)
:: Voltage: 120/277VAC: 60Hz
:: Load Horsepower: 1/6HP
:: Fits in any standard wall-box
:: Coverage area: 720 ft2
:: Mounting: Wall Mount
:: Operating temperature: 32°F ~ 131°F
:: Detection Angle: 180°
:: Manual ON/ Automatic OFF operation
:: Passive Infrared (PIR) Technology
:: California Title 24 compliant
:: Neutral required
:: Green LED indicates motion was sensed
:: Load requirements:0-800W/0-1200W Incandescent: fluorescent: indicate LED lamp: compact fluorescent (CFL): magnetic low-voltage (MLV) and electronic low-voltage
:: Operating Humidity: 95%RH: non condensing
:: Adjustable time delay from 15secs~30mins
:: Sensitivity adjustment.

:: Ideal for offices: conference rooms: break rooms: storage areas: basements: restrooms.
