USHB-150W-50K

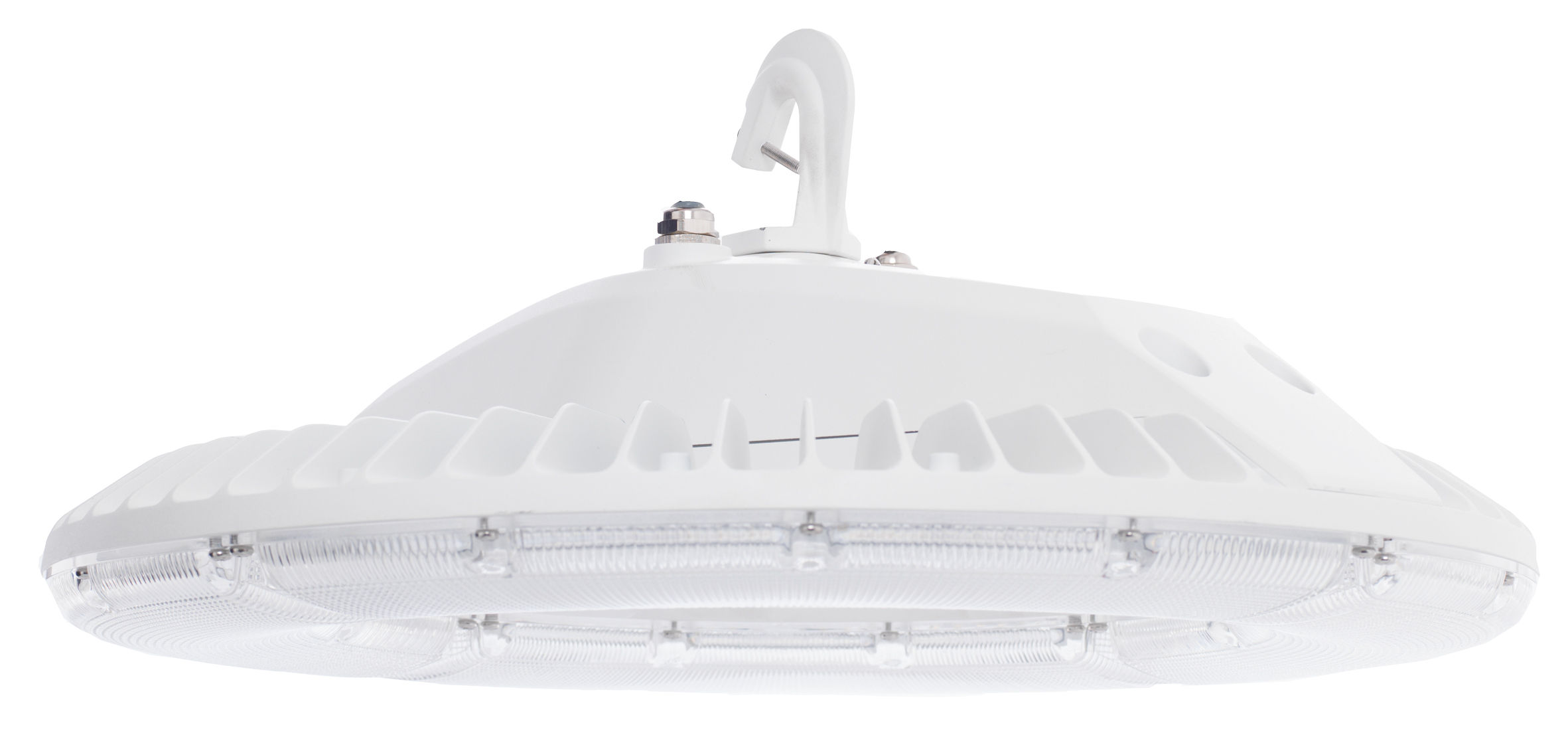

LED Saturn UFO Highbay
Technical Specs
- :: Housing: Aluminum heat sink, White finish
- :: Voltage: 120-277V AC; 60Hz AC
- :: Cord type: 6' SJTW 18/3 AWG cable
- :: Efficacy: 130LM/W
- :: CRI: >80
- :: Power Factor: ≥0.9
- :: Beam Angle: 110°
- :: THD: <20%
- :: 0~10V Dimming
- :: Operating Temp.: -4°F to 122°F
- :: Aluminum LED Board: High conductive, waterproof, aging resistant, salt mist resistance, long-life
- :: 5-year warranty
- :: Suitable for Wet Locations, IP66
Applications
- ::Suitable for restaurants, bakeries, food facilities, gyms, pool areas and any application where NSF certified fixtures or high-end architectural designer grade fixtures are required. NSF/ANSI 2:2015 Food Equipment: Splash Zone: Equipment surfaces that are subject to splash, and food spillage during operation of the equipment other than those in a direct contact food-zone.
