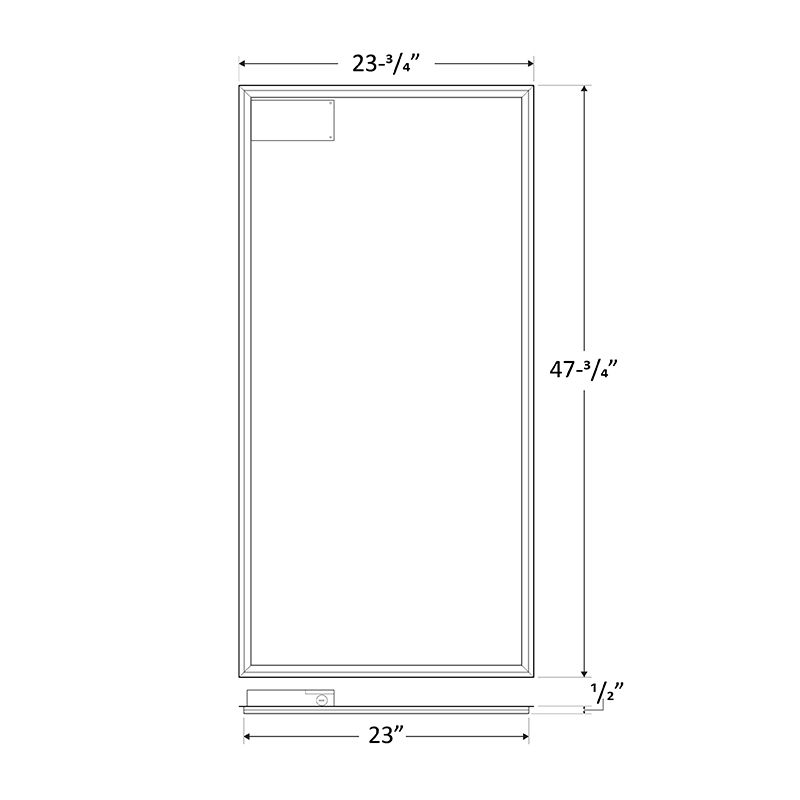

TGL-2X4-MCTP

:: Extruded Aluminum with White Finish
:: High quality LED chips provide high efficiency, heat dissipation, stability and lumen maintenance
:: Performance lens assembly delivers unique beam angles and reduce glare

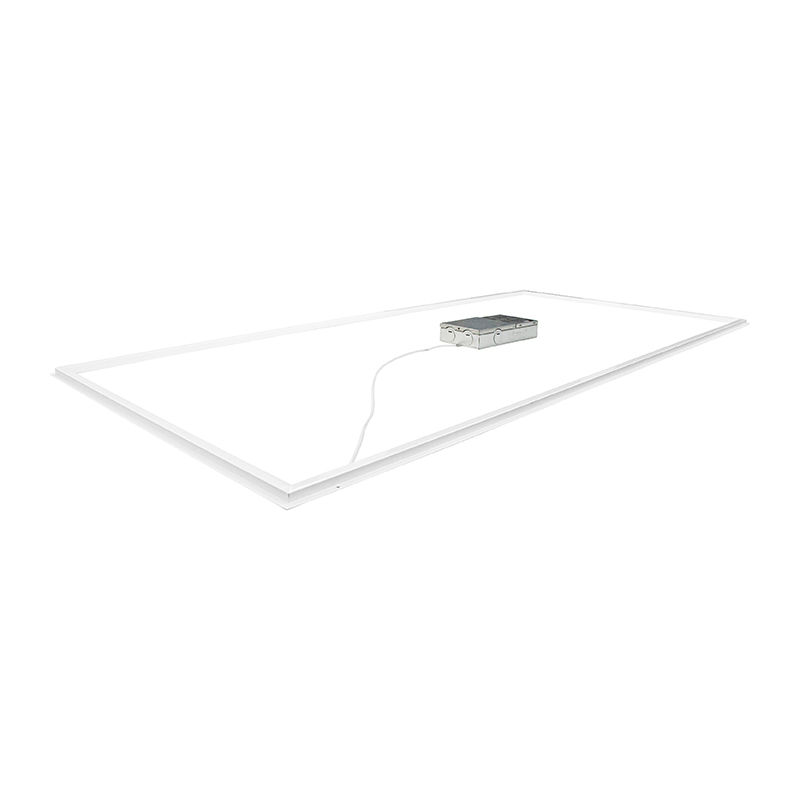

:: Driver/Junction box is separate and connects to the fixture with a 3Ft. Dongle.
:: Driver/Junction box installs on adjacent grid, on top, using your choice of T-Bar bracket or Westgate T-Bar bracket model (ELB-TBAR1)
:: Driver disconnect provided where required to comply with US and Canadian codes
:: Surge protector
:: Multi-Color temperature & Multi-Power (Selectable switch in driver box)
:: Dimmable: 0 ~ 10V Driver for continuous dimming
:: Lumens: 5250LM/6750LM/8100LM
:: Wattage: 35W/45W/54W
:: Voltage: 120-277V
:: Efficacy: 150LPW
:: Power Factor: >0.92
:: Maximum Ambient Temperature: -22°F to 104°F
:: Color Rendering Index: CRI ≥ 80
:: Color Temp: 3000K/4000K/5000K
:: Lifespan: 50,000 hours
:: 5-year warranty
:: IP Rating: IP20 Indoor use only

:: Suitable for retail, schools, offices, healthcare, conference rooms, hospitality, corridors, receptions areas, foyers library.
