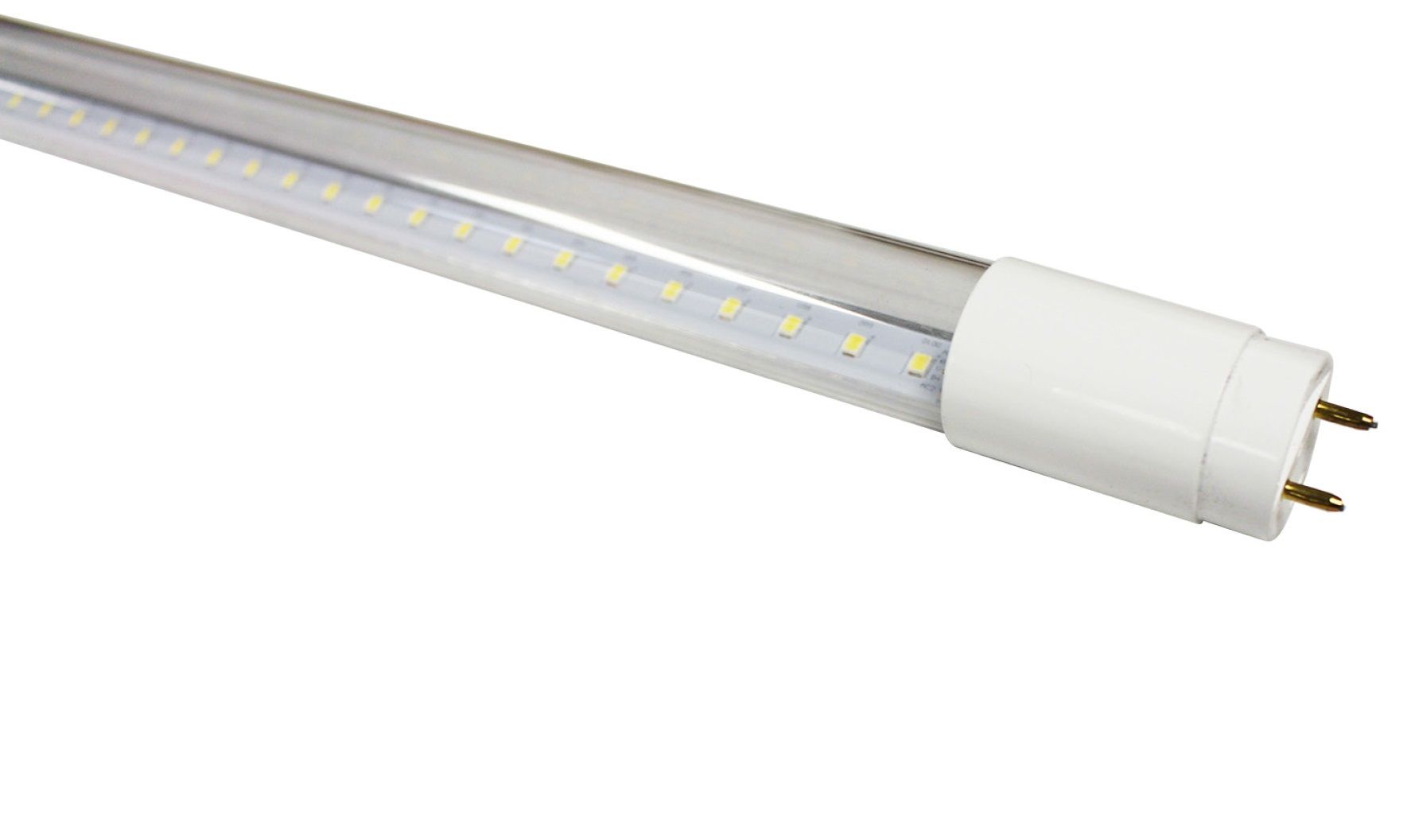

T8-4FT-DIM-18W-40K-C 4000K Clear 4FT Dimmable LED T8 Glass Lamp AC Direct
Technical Specs
- :: Wattage: 18W
- :: Voltage: 90-140VAC
- :: Power Factor: >0.90
- :: Efficacy: 105-119 LM/W
- :: Total Lumens: 2:150 LM
- :: Color Temperature: 4000K
- :: Dimming: Dimmable
- :: Beam Angle: 120-degree
- :: Lens: Clear
- :: Base: G13 (Fits Standard T8 or T12 Sockets)
- :: Tube Type: AC Direct: Single-Ended (Ballast Bypass)
- :: For Use in Open Fixtures Only — Not for Enclosed Fixtures
- :: Ballast Must Be Bypassed — Sockets Wired Directly to Line Voltage
- :: Operating Temperature: 14-degree F to 80-degree F
- :: Rated Life: 50:000 Hours
- :: Warranty: 5 Years
- :: Certifications: UL Listed: NSF
Applications
- :: The T8-4FT-DIM-18W-40K-C is the 4000K clear lens option of the T8-4FT-DIM dimmable LED T8 glass lamp series. Designed for direct AC ballast bypass installation: it is ideal for offices: retail stores: showrooms: and residential applications: especially where fixture access is limited. The single-ended AC direct connection eliminates the ballast: and the G13 base fits standard T8 and T12 sockets. The clear glass lens delivers crisp: bright neutral white light distribution for open fixture installations.
