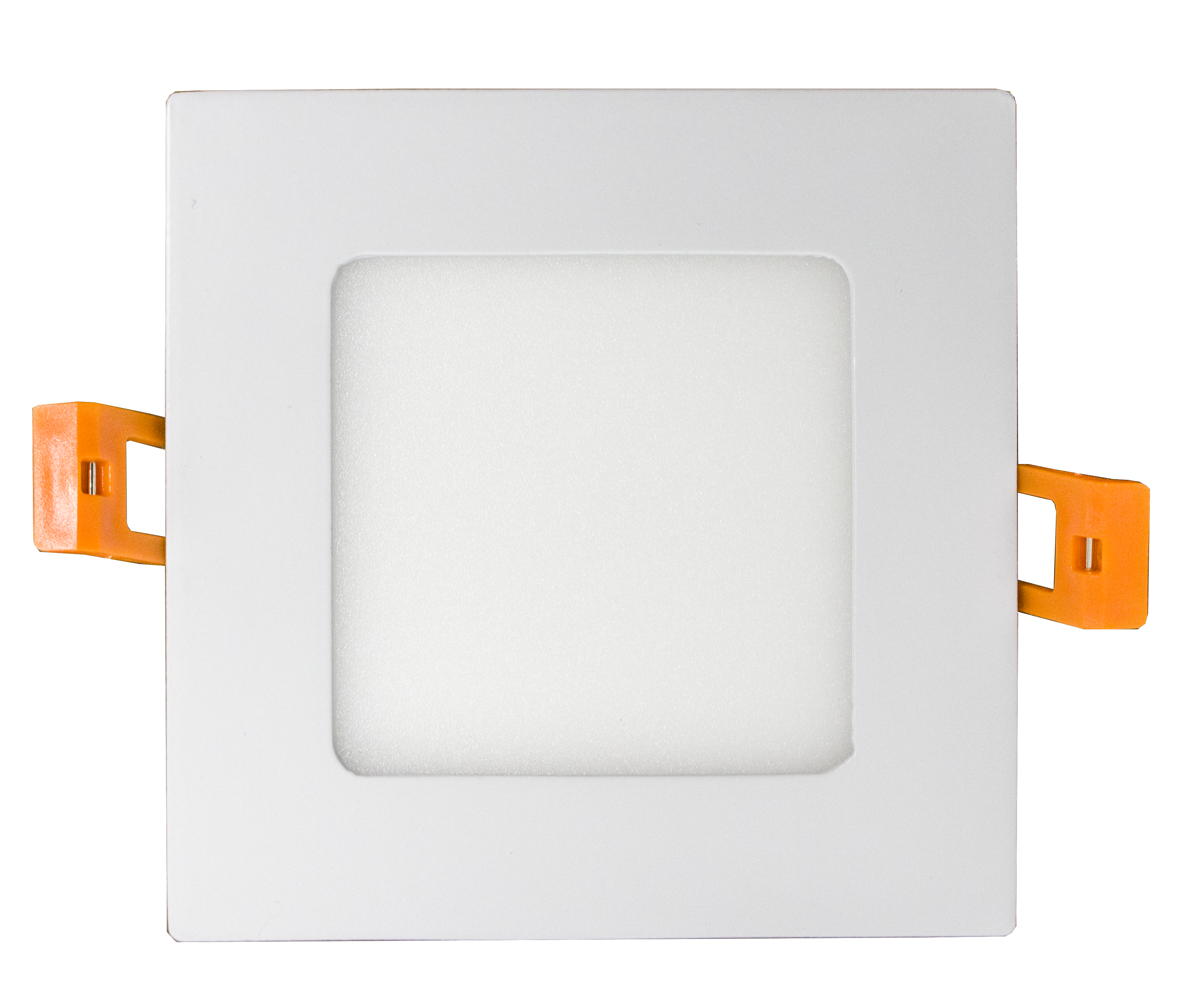

SSL4-50K
SSL4-50K
Technical Specs
- :: Die-cast aluminum with white powder coat finish
- :: Pot light housing is not required even for insulated ceilings
- :: Optics: White translucent acrylic lens
- :: Lens: 0.125" white translucent acrylic
- :: Type IC rated - Approved for direct contact with insulation
- :: CRI: >80
- :: Working voltage: 120V AC
- :: Beam Spread: 100-110°
- :: Dimmable
- :: LED: Seoul DOB (Driver On Board) Technology
- :: Power factor: 90% +
- :: Air-tight and damp location approved
- :: Maximum Ambient Temperature: -40°F~104°F
- :: 5000 Hours, 5-year warranty
- :: ETL-listed
- :: Energy Star-rated
Applications
- :: LED recessed trims have been designed to be a flexible lighting solution for new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
