SCX2-8FT-80W-MCT4-D

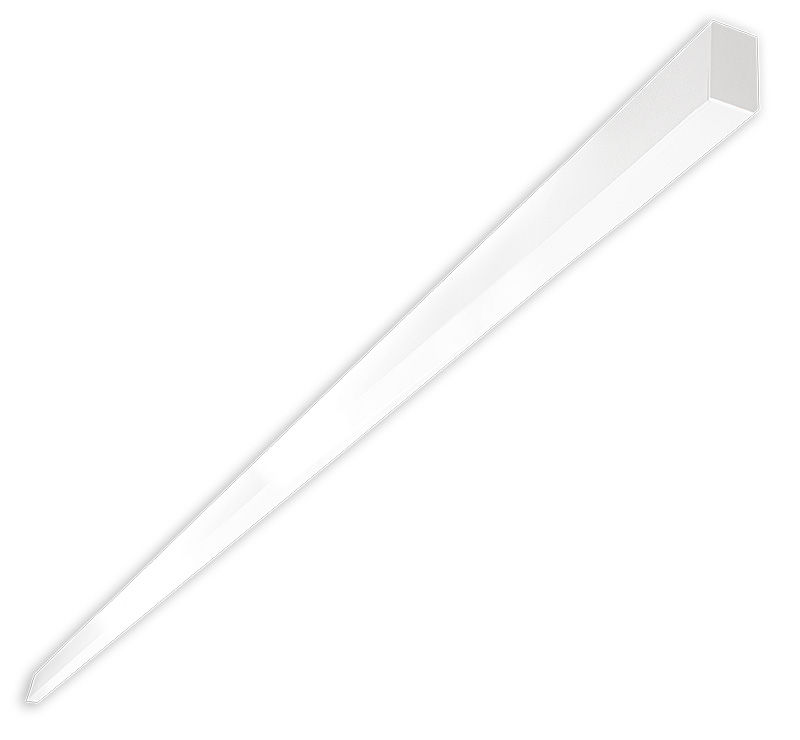

LED Superior Architectural Seamless Linear Lights
Technical Specs
- :: Voltage: 120~277VAC 50/60Hz
- :: Ambient Temperature: -13°F~104°F
- :: Dimmable: 0~10V dimmable
- :: CRI:>80
- :: Power Factor:>0.95
- :: Efficacy: 110LM/W
- :: IP Rating: IP54
- :: Life Span: 50,000 hours
- :: Housing: White, Aluminum
- :: Lens: Frosted Polycarbonate
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Dimensions | Description | Color Temp | Lumens | ||
|---|---|---|---|---|---|---|
 SCX2-L-MCT4 SPEC INST | 5.39” X 5.39”X 3.15”X 1.97” | Joint Type: L | 3000K/3500K/4000K/5000K | 508LM/575LM/616LM/660LM | ||
 SCX2-T-MCT4 SPEC INST | 8.82” X 5.39” X 3.15” X 1.97” | Joint Type: T | 3000K/3500K/4000K/5000K | 629LM/726LM/787LM/854LM | ||
 SCX2-X-30K-MCT4 SPEC INST | 8.82” X 8.82” X 3.15” X 1.97” | Joint Type: X | 3000K/3500K/4000K/5000K | 733LM/863LM/944LM/1037LM | ||
 SCX2-IC-MCT4 SPEC INST | 6.97” X 6.97” X 1.97” X 3.15” | Joint Type: X | 3000K/3500K/4000K/5000K | 629LM/726LM/787LM/854LM |
OPTIONS
