SCL-4FT-40W-50K-D

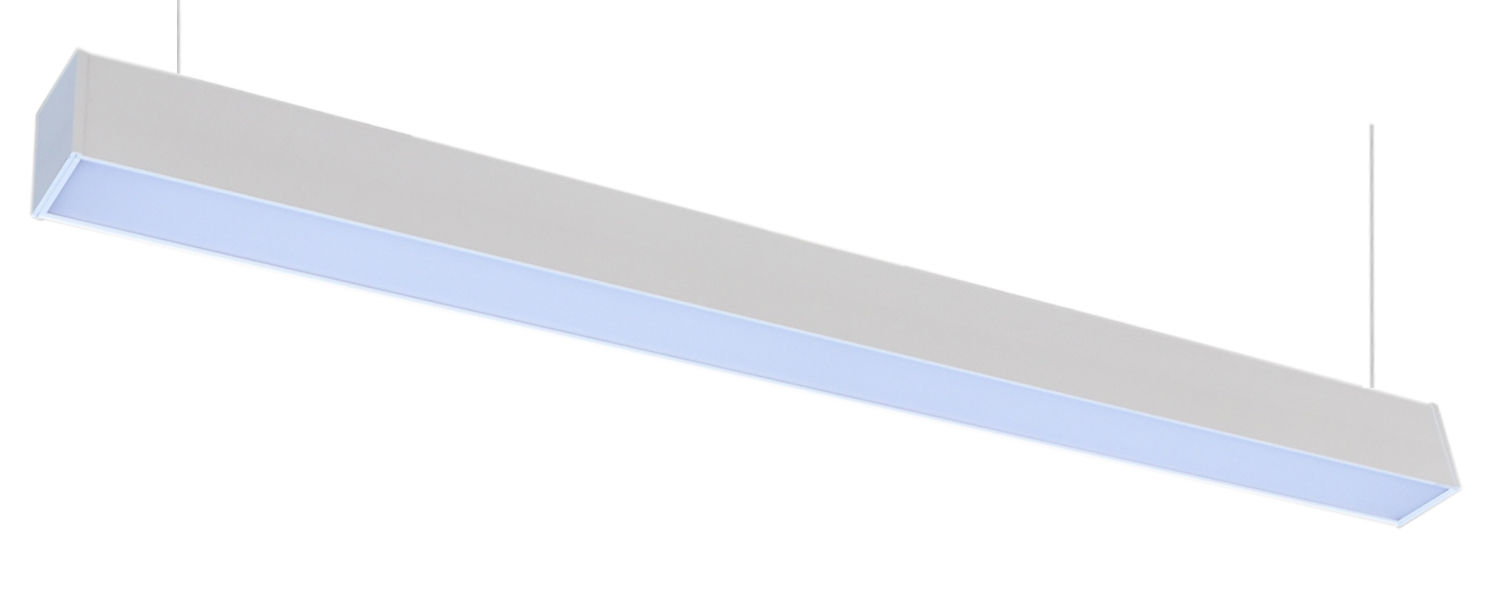

LED Architectural Suspended Lights, 40W, 3500K/4000K/5000K

Technical Specs

  • :: Voltage: 120~277VAC 50/60Hz
  • :: Wattage: 40W
  • :: Color Temperatures: 3500K/4000K/5000K
  • :: Lumens: 4400LM
  • :: Ambient Temperature: -13ºF ~ 104ºF
  • :: Dimmable: 0~10V dimmable
  • :: CRI: >80
  • :: Power Factor: >0.95
  • :: Efficacy: 110LM/W
  • :: IP Rating: IP20
  • :: Life Span: 50,000 hrs.
  • :: Housing: White, aluminum housing
  • :: Lens: Opal
  • :: Suspended mounting

Features

  • UL Listed
  • Dimming 0-10V
  • LM 79 89
  • 5 year warranty
