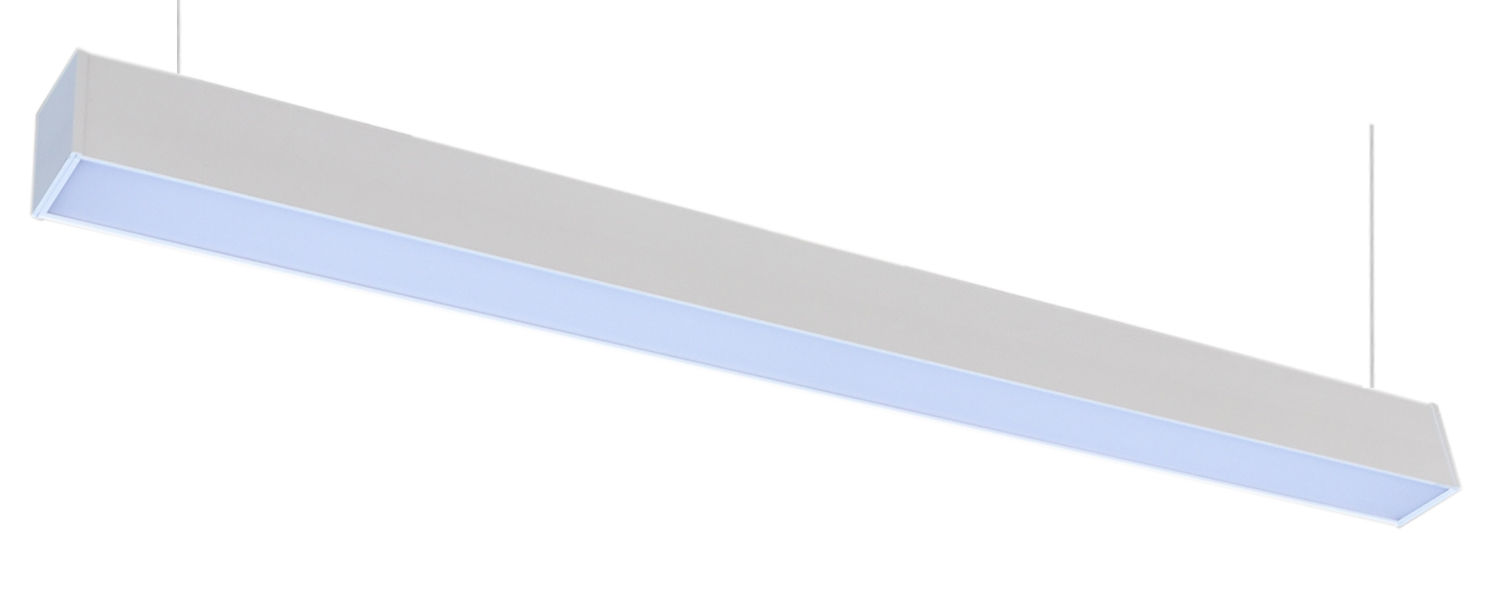

SCL-4FT-40W-35K-D

:: 4 Feet long with coupling clip for tandem installation
:: The down only version provides 40W @ 4400 lumens
:: The up-down version provides 10W @ 1100 lumens up light and 30W @ 3300 lumens down light.
:: Surface Mounting Hardware included (not shown)
:: Optional Recessed Mounting Kit available
:: Voltage: 120~277VAC 50/60Hz
:: Wattage: Down Light: 40W Up/Down: 10W/30W
:: Ambient Temperature: -13°F~104°F
:: Dimmable: 0~10V dimmable
:: CRI:>80
:: Power Factor:>0.95
:: Efficacy: 110LM/W
:: IP Rating: IP20
:: Life Span: 50,000 hours
:: Housing: White, Aluminum
:: Lens: Frosted Polycarbonate
