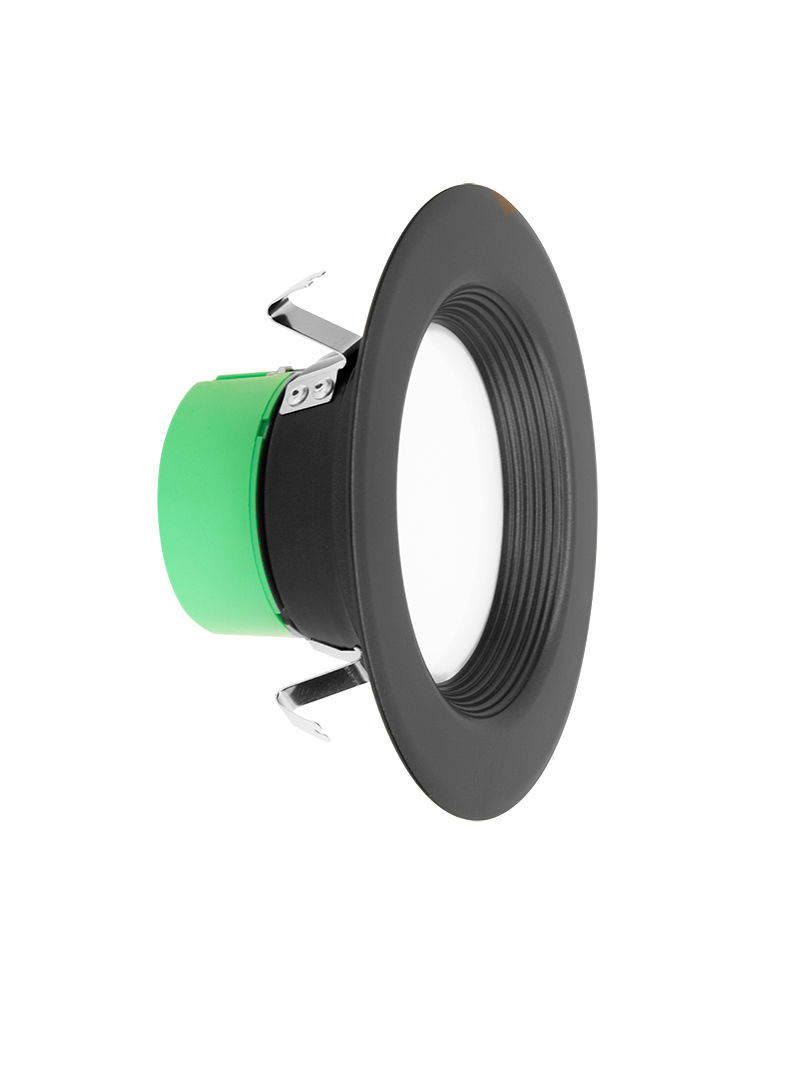

RDL4-BF-MCT5-BK

:: Voltage: 120V AC
:: Output Voltage: 36VDC
:: Power Factor: >0.90
:: Wattage: 10W
:: Efficacy: 70 LPW
:: Total Harmonic Distortion: ≤15 %
:: Spun Aluminum with White Powder Coat Finish
:: Includes 8” Medium Base E-26 Screw-in Adapter That Fits any Standard Incandescent Down-light
:: Maximum Ambient Temperature: 104°F
:: Fits in Standard 6” Recessed Housings
:: Rated life: 50,000 hrs
:: Suitable For Wet Location
:: Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
:: LED: Epistar Chip (COB) and Driver—35,000-hour Design Life
:: Can Rotate after Installation to Align
:: Optics: White Translucent Acrylic Lens
:: Total Lumens: 700 LM
:: Multi Color Temperatures: 2700K/ 3000K/ 3500K/ 4000K/ 5000K
:: Multi CCT (Selectable Switch on the Back of the Driver )
:: Color Rendering Index: CRI ≤ 90

:: LED retrofit trim have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.
