SPEC SHEET

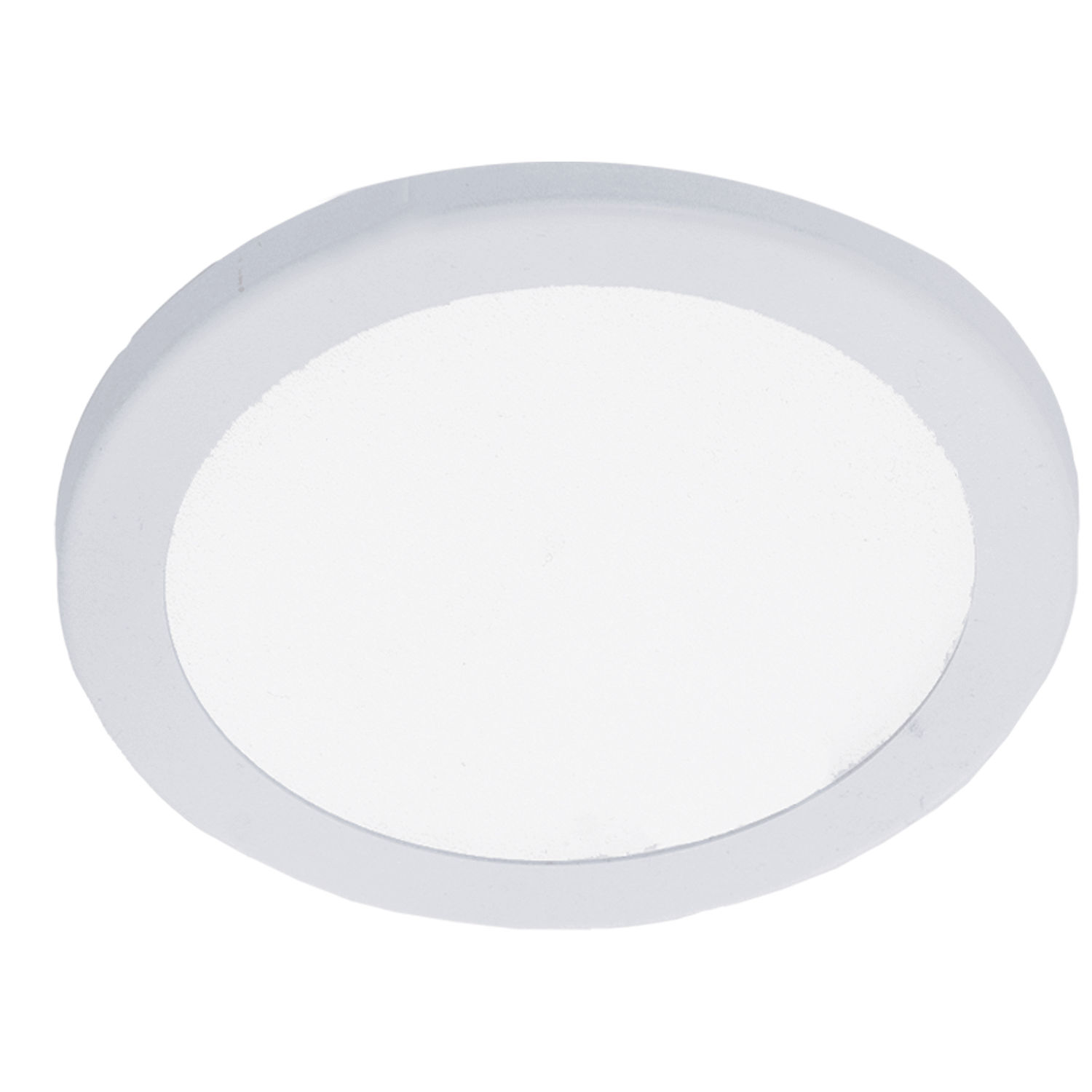

PL12R-30K-WH 3000K White Round 4-inch Slim LED Puck Light
Technical Specs
- :: Wattage: 3.5W
- :: Working voltage: 12V DC
- :: Lumens: 230LM
- :: Efficacy: 65 LM/W
- :: Color temperature: 3000K
- :: Beam angle: 120-degree
- :: Housing: PC housing with white finish
- :: Cord: 3.3 ft cord with male socket
- :: Mounting: recessed
- :: Trim: screwless trim
- :: Profile: round
- :: Dimensions: 3.95-inch diameter (4-inch nominal)
- :: Warranty: 3-year
Applications
- :: The PL12R-30K-WH is the warm-white round member of the PL12 puck line from Westgate: casting a soft 3000K glow well suited to kitchens: display cases: and residential millwork where a cozy tone flatters wood and warm finishes. Its round profile suits circular cutouts and traditional cabinetry: and like every puck in the series it installs recessed with a screwless trim and plugs into the PL12 accessory system. Choose 3000K when warmth matters most; Westgate offers the same round fixture in 4000K and 5000K: and a square PL12S profile for angular millwork.
