LF3-220CW-YK

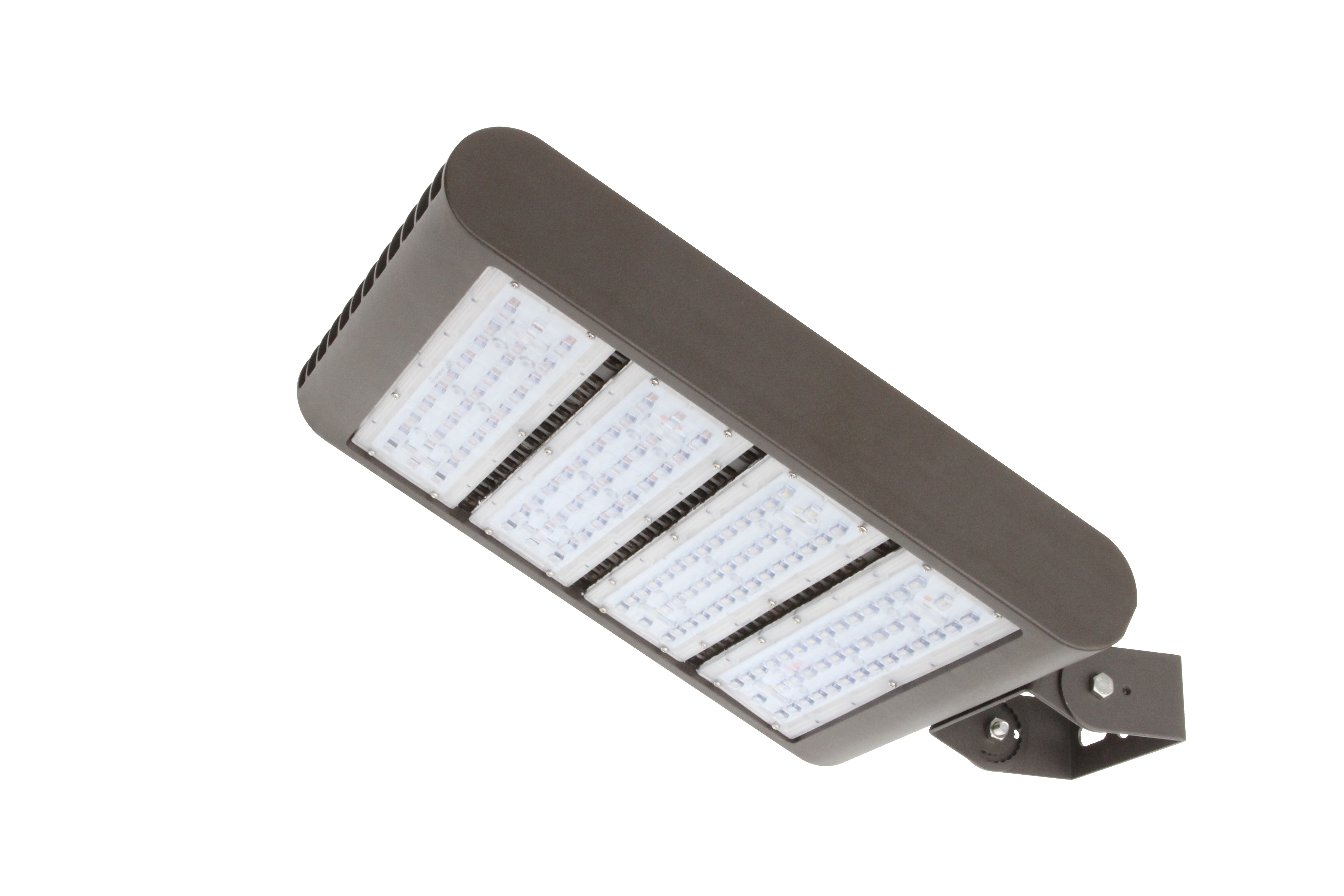

LF3 Flood Light Series with Yoke, 120~277V, 220W, 5000K
Technical Specs
- :: Housing: Die-cast aluminum housing with powder coat finish (Dark Bronze)
- :: Voltage: 120~277V; 60Hz AC
- :: 0~10V dimming (except 80W)
- ::TIR Optic Lens - TYPE II
- :: 6" SJTW 18/3 AWG Cable
- :: Power Factor: .9~.97
- :: Operating Temp:-40°F to 104°F
- :: Up to 100 lumens per watt
- :: CRI: 82~84
- :: 70,000 hour rated life, 7-year warranty
- :: Suitable for Wet Locations, IP65
Applications
- :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- :: Great for use with motion sensors or other instant on/off controls
