FMD-11-MCT5-BN

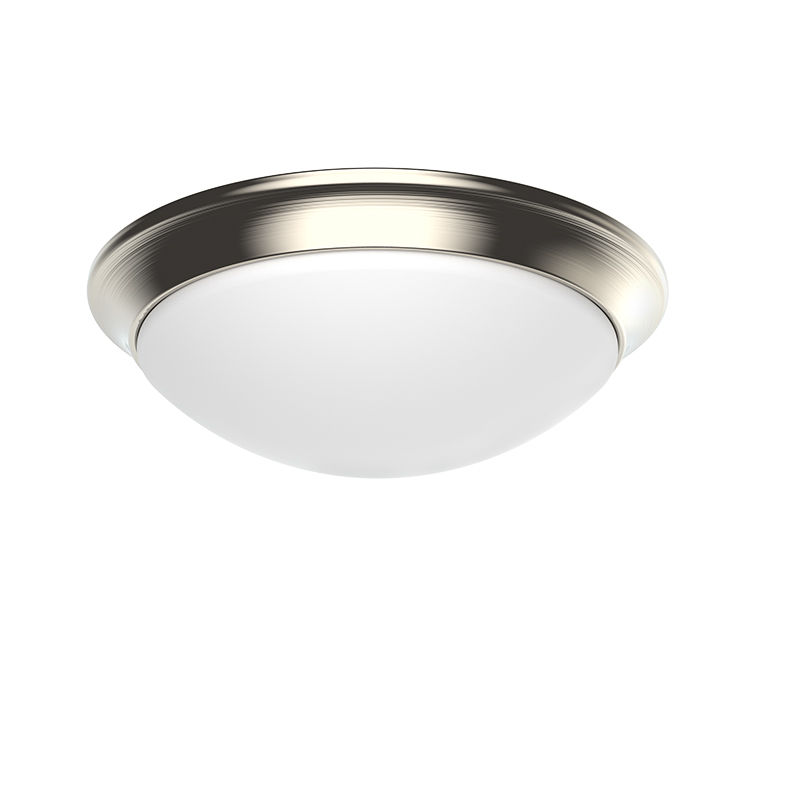

FMD LED Multi-CCT Dome Flush Mount Light

Technical Specs

:: Voltage: 120 VAC 60Hz
:: Wattage: 20W
:: Power Factor: >0.9
:: Efficacy: 75 LPW
:: Optics: White Translucent Acrylic Lens
:: Construction: Spun aluminum Steel (Brushed Nickel Finish)
:: Operating Temp: -4ºF to +104ºF
:: IP20, Indoor Use Only
:: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
:: Total Lumens: 1500LM
:: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
:: Multi-CCT (selectable with switch is on the LED Board Under the Lens)
:: Color Rendering Index: CRI ≥ 80

Applications

:: The LED Flush Mount Surface Fixture is a low profile down light intended for ceiling or wall mount applications. Driver on Board (DOB) technology, with no driver or transformer needed. These flush mount ceiling lights mount directly to a 4” deep dish junction box ideal for Residential and commercial applications

Features
