CMC2L-MCT-DT-BK

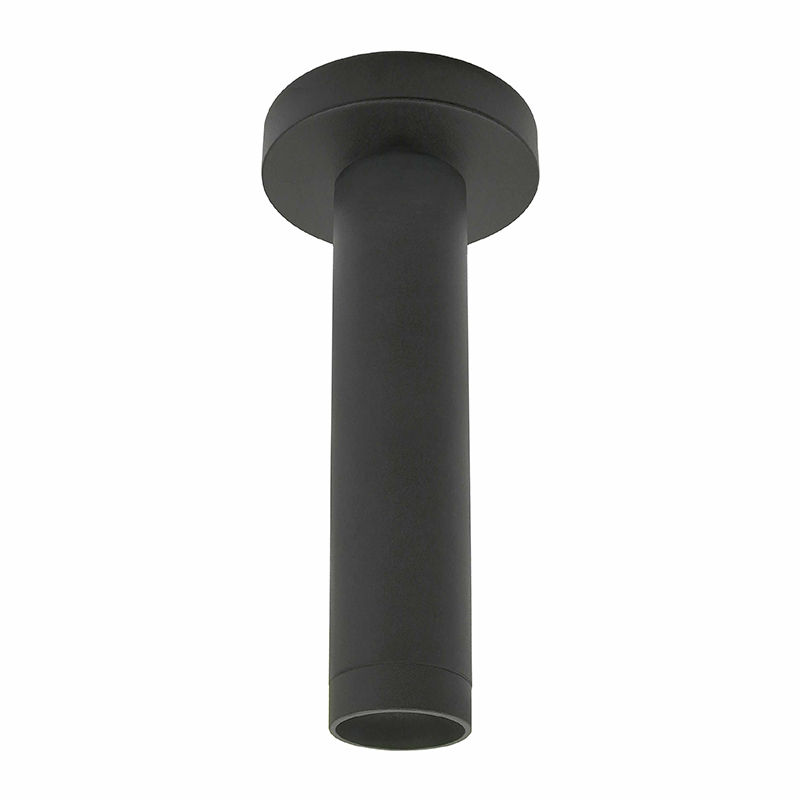

2" Round Architectural Ceiling & Suspended Cylinders, 6W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120V, 60Hz
- :: Power Factor: >0.90
- :: THD: <20%
- :: Wattage: 6W
- :: Efficacy: 75 LPW
- :: Aluminum Housing & Glass Lens
- :: Suspension Cable & Canopy Set Accessories Avail.
- :: Universal Swivel W/ Rod Kit Accessories Avail. Ambient Operating Temperature: -13ºF to 113ºF
- :: Rated life: 70,000 hrs
- :: IP Rating: IP40 suitable for damp locations
- :: Dimming: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer TRIAC logo
- :: Total Lumens: 450LM Max.
- :: Color Temperatures: MCT 3000K/4000K/5000K CCT Switchable
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 40°
Applications
- :: 2" Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Polycarbonate (PC) Lens
Features
ACCESSORIES
| Product Name | Description | |||
|---|---|---|---|---|
 CMC2-HCDK-BK  SPEC SPEC | 2-inch ceiling mount cylinder honeycomb diffuser kit, Black | |||
 CMC2-HCDK-AG SPEC SPEC | 2-inch ceiling mount cylinder honeycomb diffuser kit, Anodized Gold (AG) | |||
 CMC-CS-8FT-BK SPEC SPEC | Suspension Cable & Canopy Set For CMC Series, 8FT, 5-wire, Black | |||
CMC-CS-8FT-BK SPEC SPEC | Suspension Cable & Canopy Set For CMC Series, 8FT, 5-wire, Black | |||
 CMC-CS-8FT-WH SPEC SPEC | Suspension Cable & Canopy Set for CMC Series, 8FT, 5-Wire, White | |||
 CMC2-TRM-AG SPEC SPEC | 2-inch ceiling mount cylinder trim, Anodized Gold (AG) | |||
 CMC2-TRM-BN SPEC SPEC | 2-inch ceiling mount cylinder trim, Brushed Nickel (BN) | |||
 CMC-JBCK-BK SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy | |||
 CMC-JBCK-WH SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy |
