WMCL-SERIES
WMCL - 6" LED MCT Large Wall Mount Cylinder Lights
Technical Specs
- :: Voltage: 120~277V AC
- :: Power Factor: >0.95
- :: Wattage: 20W/40W, 20W Per End
- :: Efficacy: 80 LPW
- :: THD: <20%
- :: Housing: Die-cast Aluminum & Glass
- :: Finish: Black, Bronze, Brushed Nickel & White
- :: Maximum Ambient Temperature: -68°F to 104°F
- :: Suitable for Wet Locations
- :: 7-Year Warranty
- :: Total Lumens: 1600LM-3200LM
- :: Color Temperatures: 3000K/4000K/5000K
- :: Multi CCT (Selectable Switch on the Bottom of the Arm, Protected by Silicon Cover to be Waterproof)
- :: Color Rendering Index: CRI ≥ 80
- :: Rated life: 70,000 hrs
- :: Beam angle: 45º
Applications
- :: Ideal for general site lighting, walkways and stairways, alleys, loading docks, doorways, pathways and parking areas.
- Variations
- Q & A (0)
| Product Name | Lumens | Color Temp | Watts | Dimensions | Finish | Features | ||
|---|---|---|---|---|---|---|---|---|
WMCL-UDL-MCT-BR  SPEC  IES BRCH SPD INST | 3200LM | 3000K/4000K/5000K | 40W, 20W Per End | 8-1/2"Diameter x 12-7/8"H x 5-3/4"D | Bronze |       | ||

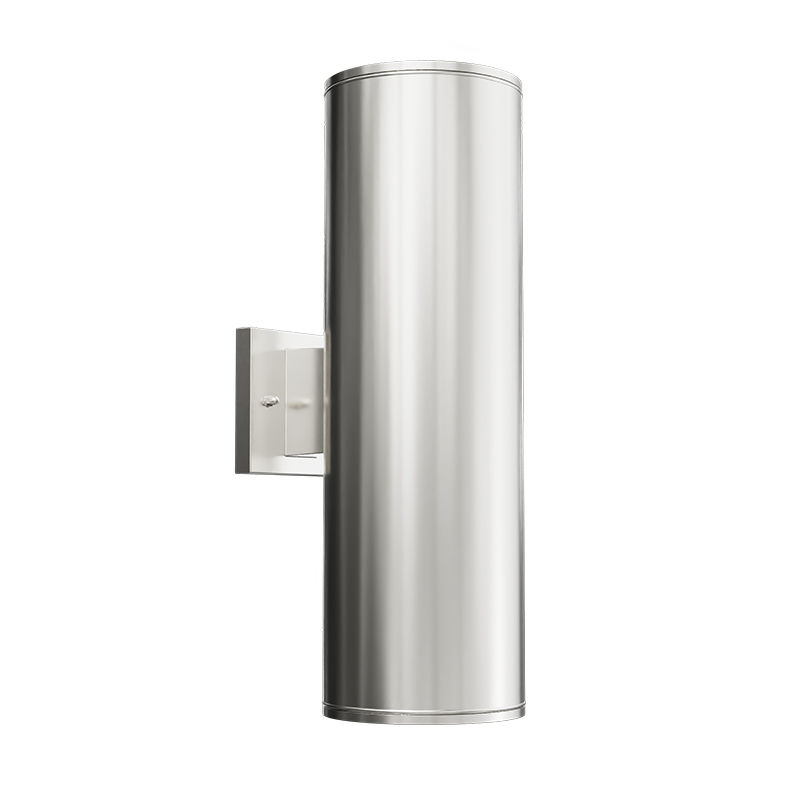

WMCL-UDL-MCT-BN IES SPEC BRCH SPD INST | 3200LM | 3000K/4000K/5000K | 40W, 20W Per End | 8-1/2"Diameter x 12-7/8"H x 5-3/4"D | Brushed Nickel | | ||
WMCL-UDL-MCT-WH IES SPEC BRCH SPD INST | 3200LM | 3000K/4000K/5000K | 40W, 20W Per End | 8-1/2"Diameter x 12-7/8"H x 5-3/4"D | Brushed Nickel | | ||

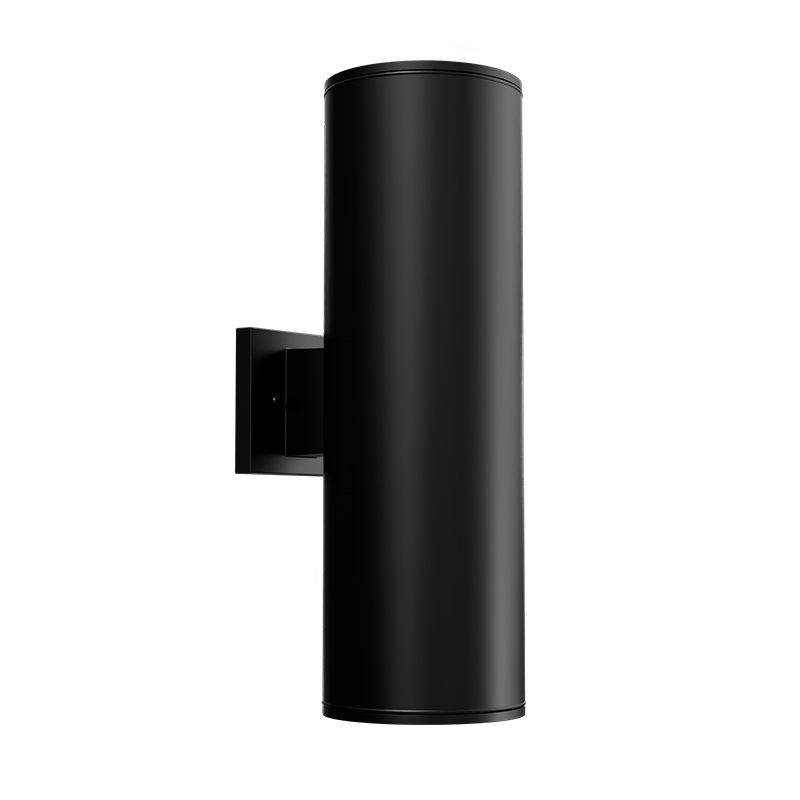

WMCL-UDL-MCT-BK IES SPEC BRCH SPD INST | 3200LM | 3000K/4000K/5000K | 40W, 20W Per End | 8-1/2"Diameter x 12-7/8"H x 5-3/4"D | Black | | ||
WMCL-DL-MCT-BK IES SPEC BRCH SPD INST | 1600LM | 3000K/4000K/5000K | 20W | 8-1/2"Diameter x 8"H x 5-3/4"D | Black | | ||

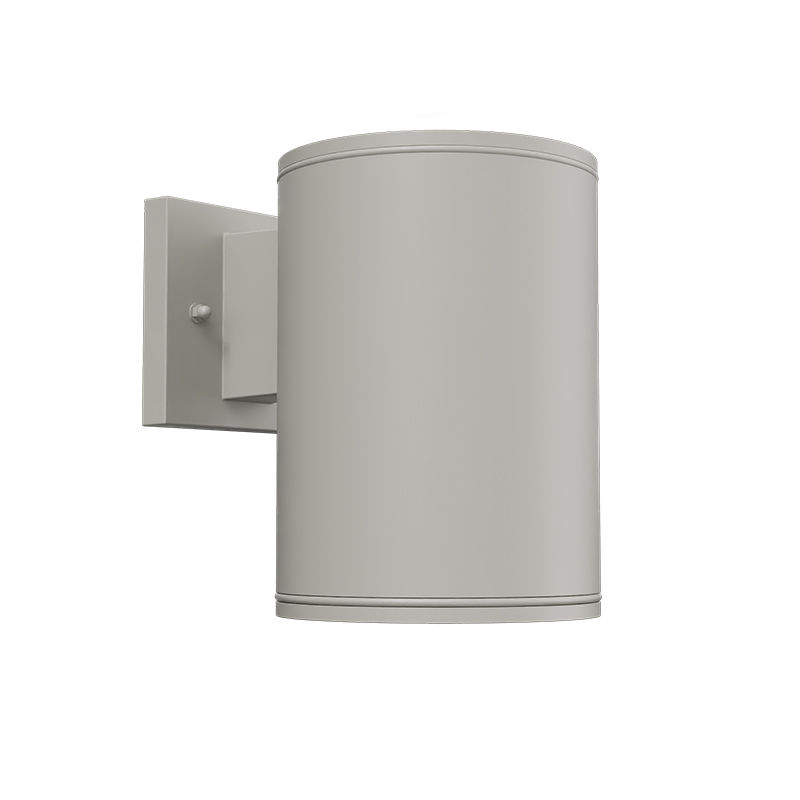

WMCL-DL-MCT-WH IES SPEC INST BRCH SPD | 1600LM | 3000K/4000K/5000K | 20W | 8-1/2"Diameter x 8"H x 5-3/4"D | White |  | ||

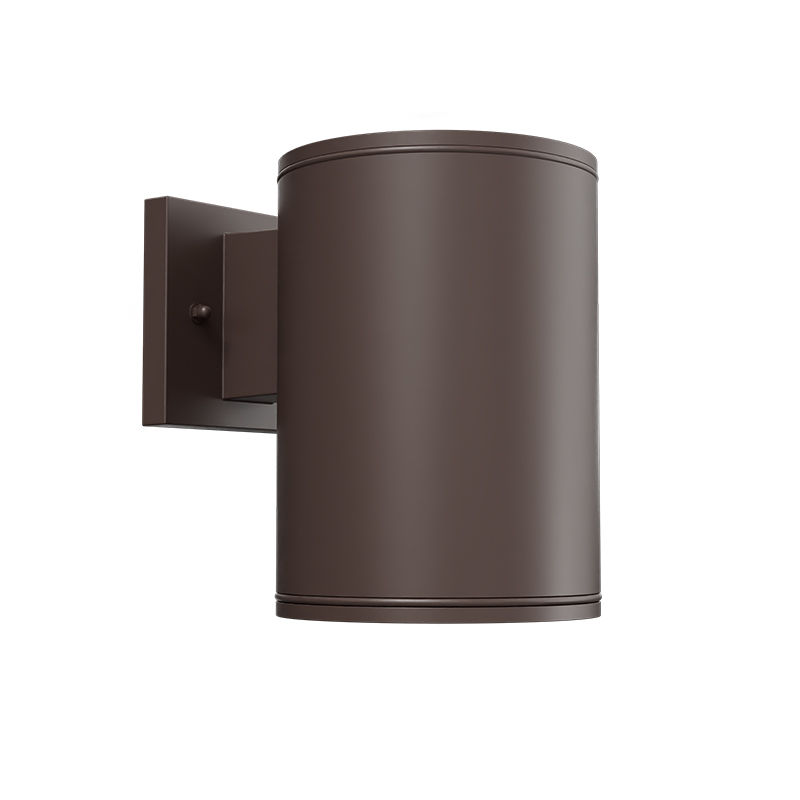

WMCL-DL-MCT-BR IES INST SPEC BRCH SPD | 1600LM | 3000K/4000K/5000K | 20W | 8-1/2"Diameter x 8"H x 5-3/4"D | Bronze | | ||
WMCL-DL-MCT-BN IES SPEC INST BRCH SPD | 1600LM | 3000K/4000K/5000K | 20W | 8-1/2"Diameter x 8"H x 5-3/4"D | Brushed Nickel | |
